Qingdao Liuyi Machinery Co., Ltd. food machinery manufacturer & vacuum frying machine
6 Years
| Ask Lasest Price | |
| Brand Name : | Liuyi |
| Model Number : | VF-LY50, VF-LY-100, VF-LY-200 |
| Price : | Price Can Be Negotiated |
| Payment Terms : | T/T |
| Supply Ability : | 50 Sets per Month |
| Delivery Time : | 20~25 Days After Receiving The Deposit |

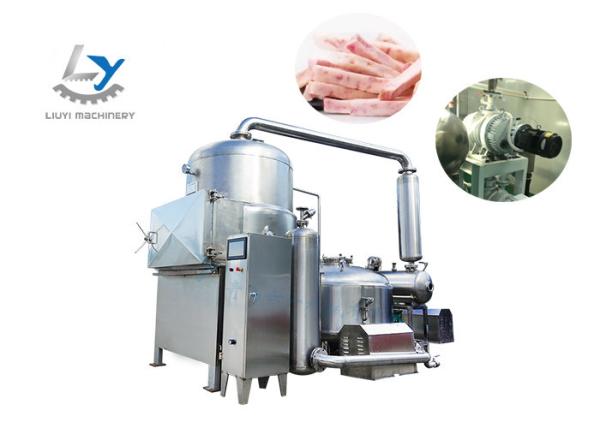

Vacuum Style Snacks Frying Machine With Automatic Temperature Control
√ Low temperature frying
√ Significantly lower oil content in finished product
√ Preserve the natural color and flavour
√ Decrease the acrylamide content
√ Preserve nutritional compounds, such as vitamins and minerals
Fruits: Jackfruit, Apple, Pear, Persimmon, Banana, Pineapple, Peach,
Mango, Strawberry, Chinese gooseberry, Carambola (star fruit),
Muskmelon etc.
Vegetables: Onion, Carrot, Sweet potato, Potato, Pumpkin, Okra, Balsam pear,
Taro, Lotus root, Kidney bean, Mushroom, Cucumber, etc.
Seafood: fish, shrimp, small crab
1. Vacuum Frying Steps
putting material in--vacuuming by pump--heating (±90℃)--putting oil
in--frying--putting oil out--swing the fried chips and make the oil
out--breaking vacuum--taking out the product.
2. Oil Cleaning Steps: we have vacuum oil filter tank to match with
our vacuum fryer.
putting water in the oil filter tank--vacuuming by pump--putting
oil in filter tank--heating the oil and water---sediment for water
and oil---pouring out the dirty water.
1. Heater exchange: the heating speed is fast, only need 8-13mins
to reach required temperature. The oil cycle area is 35-40m³.
2. Automatic: fully automatic computer control from feeding to
de-oiling. 1 person can operate 5 sets.
3. The most advance technology: equipped most advanced vacuum pump,
including our own design. The small invention of can make the noise
below 60db.
| SPECIFICATIONS | |||
| Model | VF-LY50 | VF-LY100 | VF-LY200 |
| Raw Material Input | 30kg-50kg | 80kg-100kg | 170kg-200kg |
| Machine Material | food grade SS304 | food grade SS304 | food grade S304 |
| Basket size | Φ600mm*H500mm | Φ750mm*H530mm | Φ1200mm*H600mm |
| L*W*H | 1400*3500*2500mm | 1800*4000*2900mm | 2500*4500*3100mm |
| Oil Volume | 300-500kg | 600-800kg | 1000-1200kg |
| Vacuum Degree | -0.095mpa~-0.098mpa | -0.095mpa~-0.098mpa | -0.095mpa~-0.098mpa |
| Steam Pressure | 4-8kg | 4-8kg | 4-8kg |
| Frying Temperature | 75-110℃ | 75-110℃ | 75-110℃ |
| Oil Pump | 3kw | 5.5kw | 7.5kw |
| Vacuum Pump | 7.5kw | 11kw | 15kw |
Catalog for
Automatic Vacuum Frying Machine.pdf
1. Fumigation wooden case with water-proof embrace
2. Nude pack after plastic film wrapping
3. Upon your requirements
